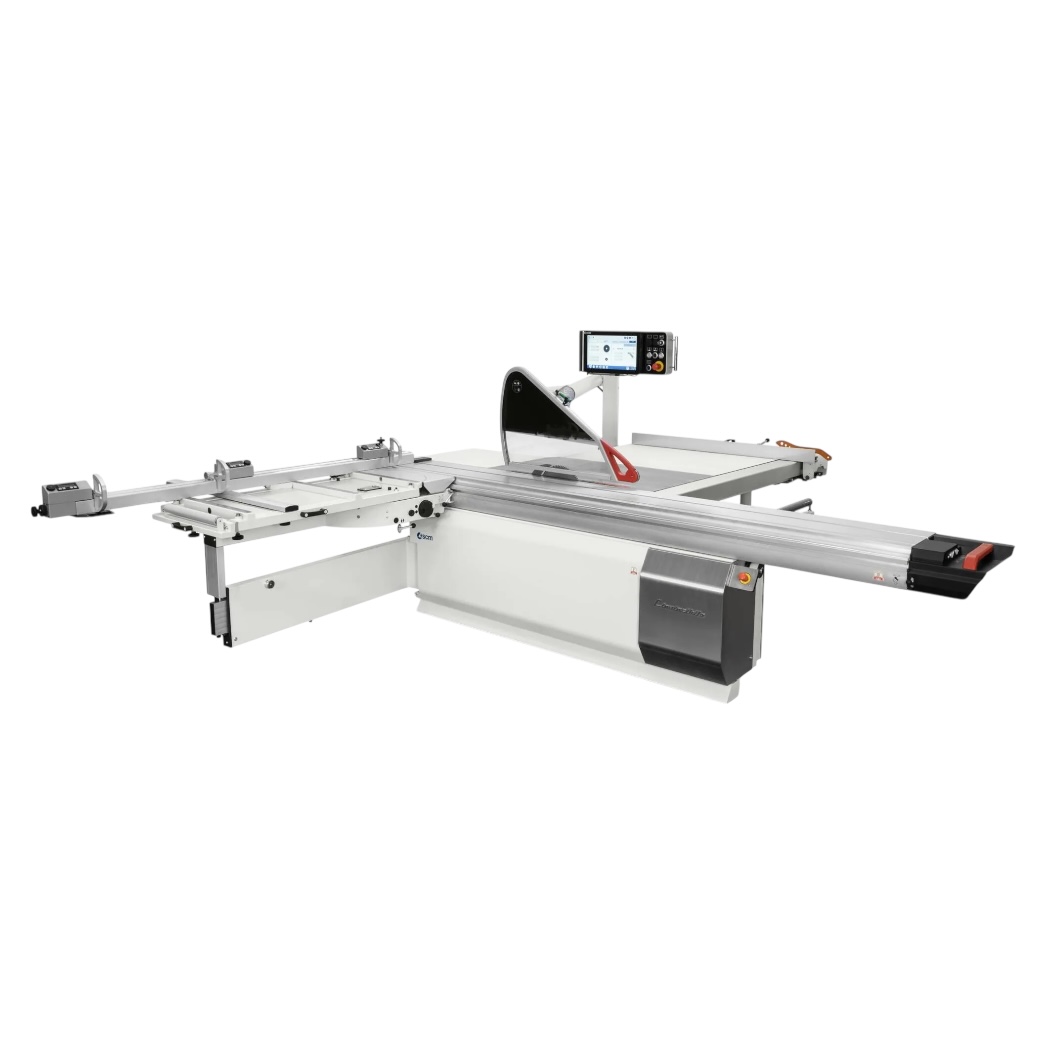

SCM L’invincibile SI X sliding table saw, CE.
Highly advanced and powerful SCM L’invincibile SI X sliding table saw with a unique 92° tilt range (-46° to +46°). This machine features a wirelessly adjustable support table, an Easy Touch 12" touchscreen, and a 550 mm saw blade capacity, making it the professional choice for precision and versatility.

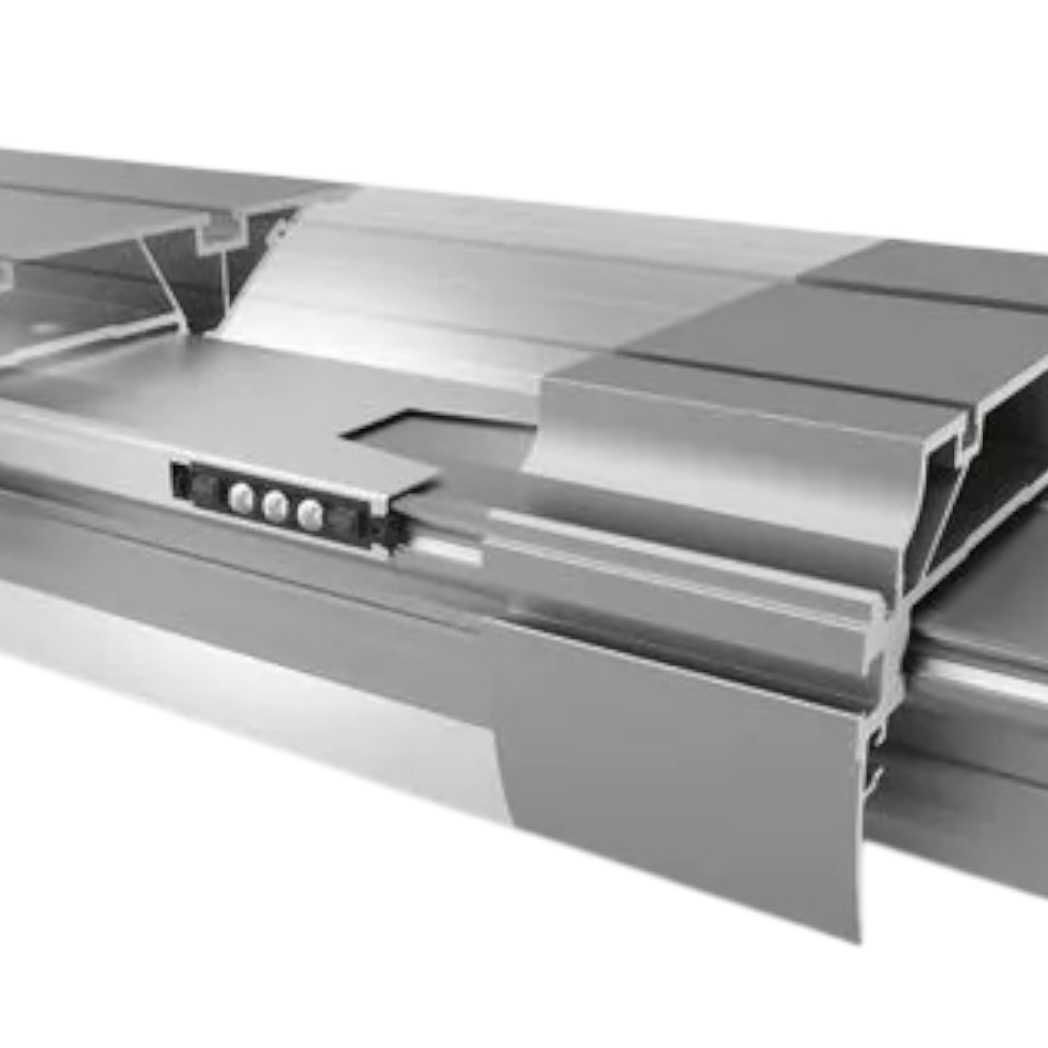

The patented roller table features ball bearings on ground arc guides made of hardened steel and has a repeatability of ±0.05 mm. SCM offers a full 10-year warranty on this aluminum roller table. The heavy-duty cast iron saw unit guarantees vibration-free cutting, even at maximum cutting heights.
Thanks to the Full Support Frame with wireless angle adjustment of the support table (±50°), this machine is ideal for miter cutting large workpieces. The corresponding readouts are displayed wirelessly on the LCD display and are connected in real time to the central control system.
Standard features include:

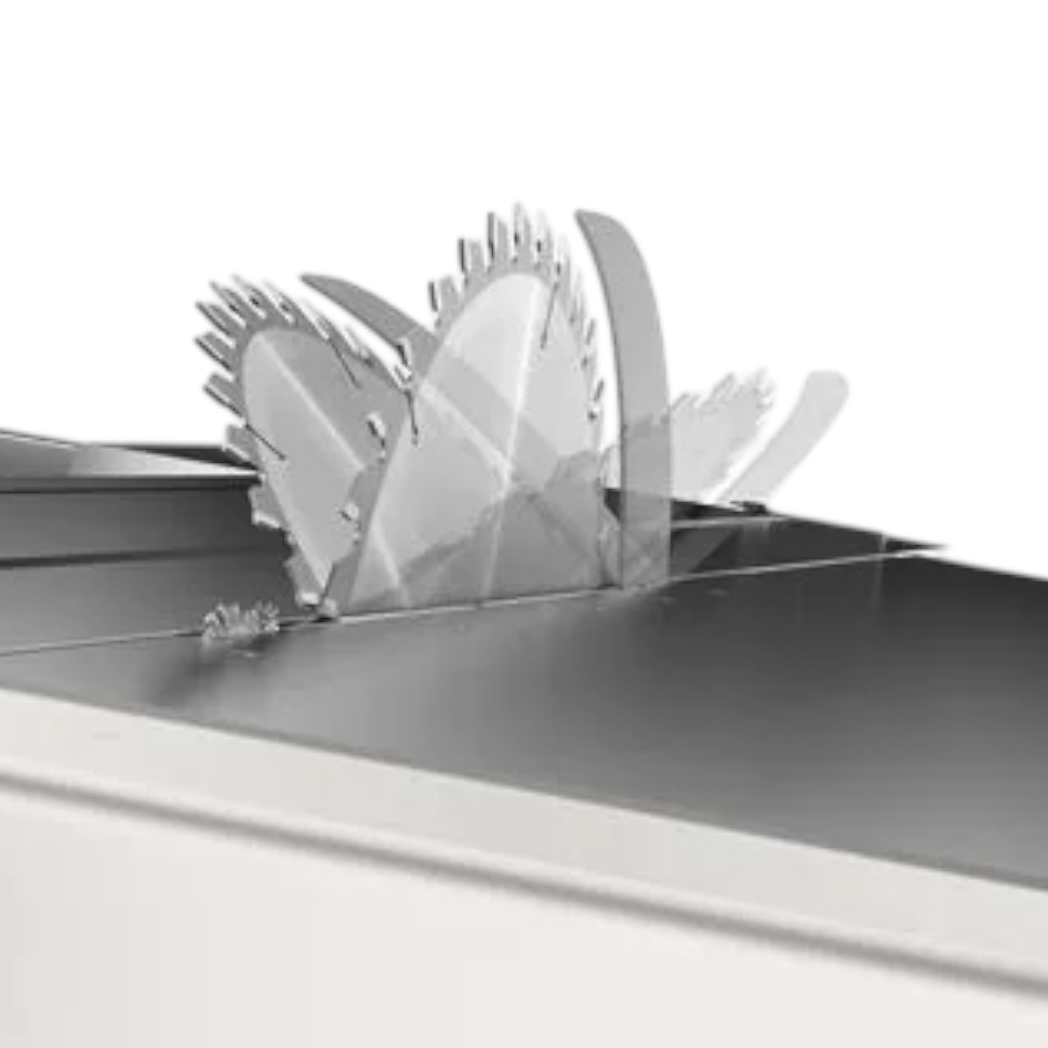

- Tilt-adjustable saw unit: from –46° to +46°
- Full Support Frame with wireless angle and cam adjustment

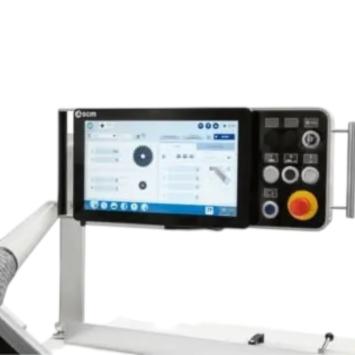

- Easy Touch 12" touchscreen With:
- Electronic cutting height and angle adjustment
- Speed adjustment via inverter (2350–5200 rpm)
- Electronic readout and memory for 999 programs
- Tool database and operator assistance
- “AP System” automatic saw guard adjustment when tilting
- Electronic rip fence (25 m/min), swiveling under the table
- Pro-lock quick-change saw blade system
- Integrated start/stop buttons in the sliding table
- Eccentric clamp and saw guard with integrated dust extraction
- Table extension on the discharge side
- Electronic motor brake and automatic start
- Low-voltage circuit (110 V), thermal protection
- Lockable main switch
Technical specifications:
- Cutting capacity: 3200 x 3200 mm
- Cutting width right: 1500 mm
- Cutting angle range: 92° from –46° to +46°
- Max. saw blade Ø: 550 mm
- Scoring blade Ø: 160 mm
- Max. cutting height (90°): 205 mm
- Max. cutting height at +45°: 130 mm
- Max. Cutting height at –45°: 105 mm
- Saw blade speed via inverter: 3000–5000 rpm
- Extraction nozzles: Ø 120 mm (frame) / Ø 100 mm (saw guard)
- Main motor: S1 9 kW (12 HP) / S6 11 kW (15 HP)
Constructed to CE standards:
- Automatic motor brake
- Microswitch at the access to the saw unit
- Extra-high parallel guide
- Emergency stop in the work area
- CE documentation with audio data
- Certificate of approval
Additional prices possible, including:
- Larger cutting widths and longer roller tables
- Parallelogram support table with wireless connection
- Pneumatic pressure bar on roller table
- Second support table with floor rail
- Miter fence with digital readout
