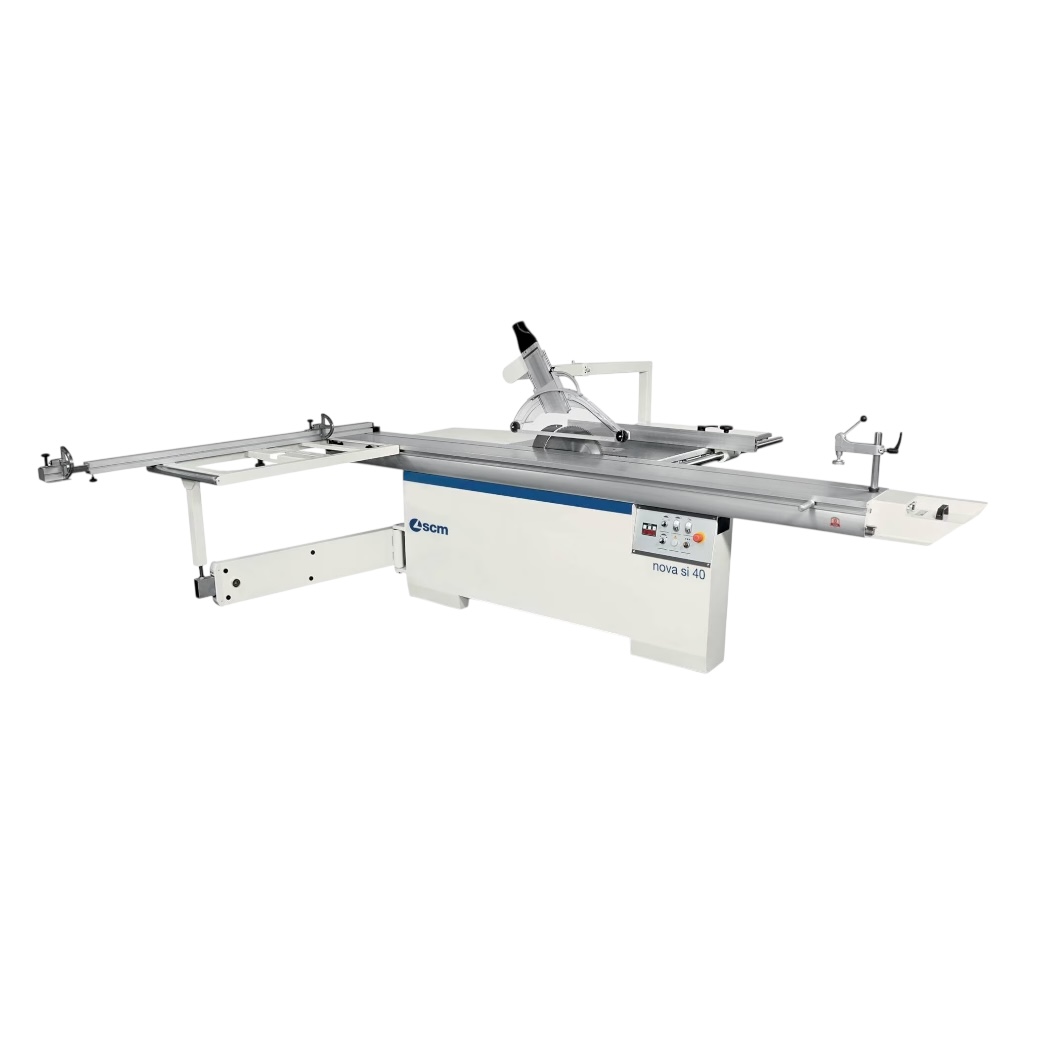

SCM Sliding Panel Saw, Type Nova SI40, CE.
The Nova SI40 from SCM is a powerful sliding panel saw for the demanding user. This robust machine combines heavy-duty cutting capacity with fine adjustment and smooth operation, and is designed for long-lasting precision and reliability in the workshop.
The sliding table (2600 mm) is equipped with hardened and ground precision guides, as you would expect from SCM. The heart of the machine is the cast iron saw unit, including a scoring saw, which guarantees vibration-free operation, even with large workpieces. The standard support table (1200 x 650 mm) provides additional support, including a fence and two fences with eccentric clamps.
The machine offers manual height and tilt adjustment, a swing-away parallel guide on a 45 mm diameter round rod, and a digital display of the cutting angle. This allows you to work both quickly and accurately.
Standard features include:
- 2600 mm roller table on hardened, ground steel guides

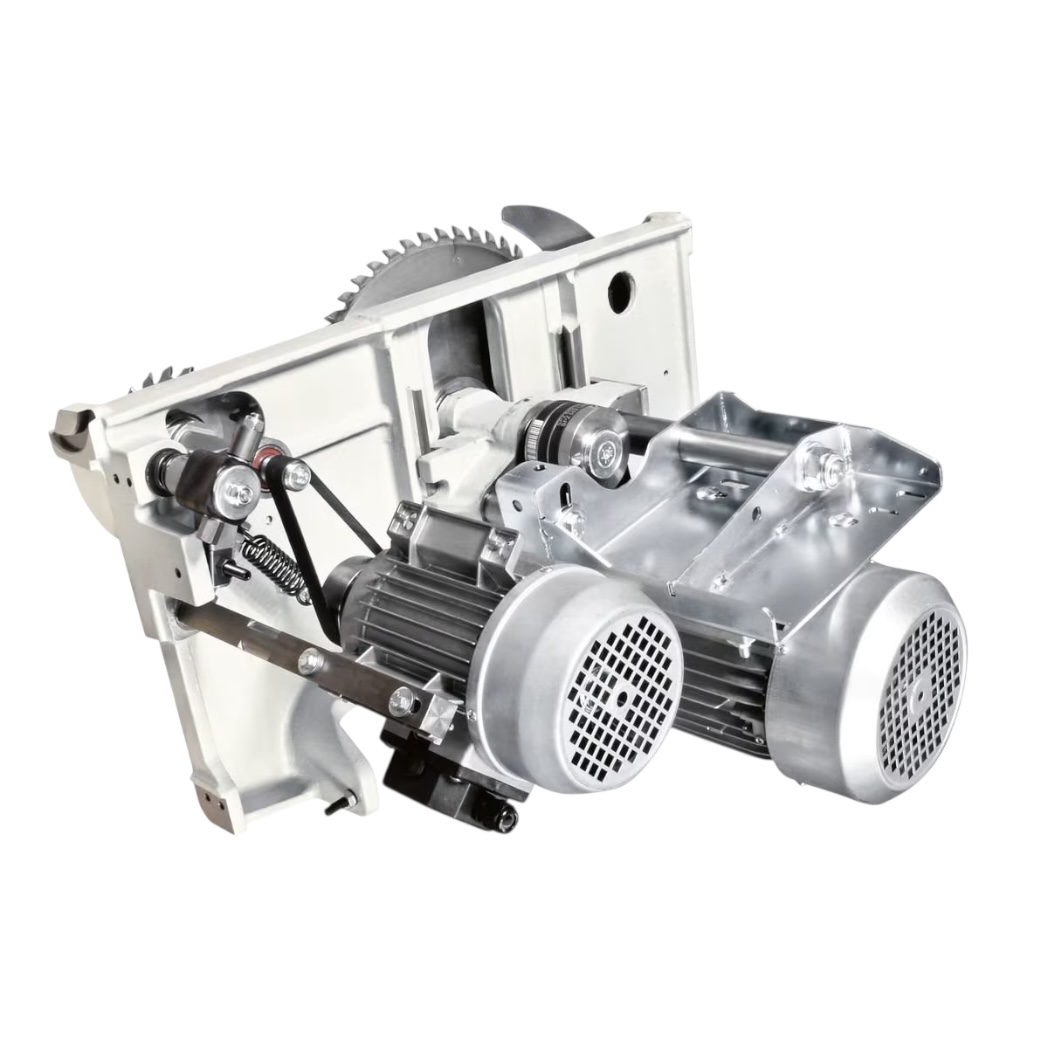

- Cast iron saw unit with scoring saw

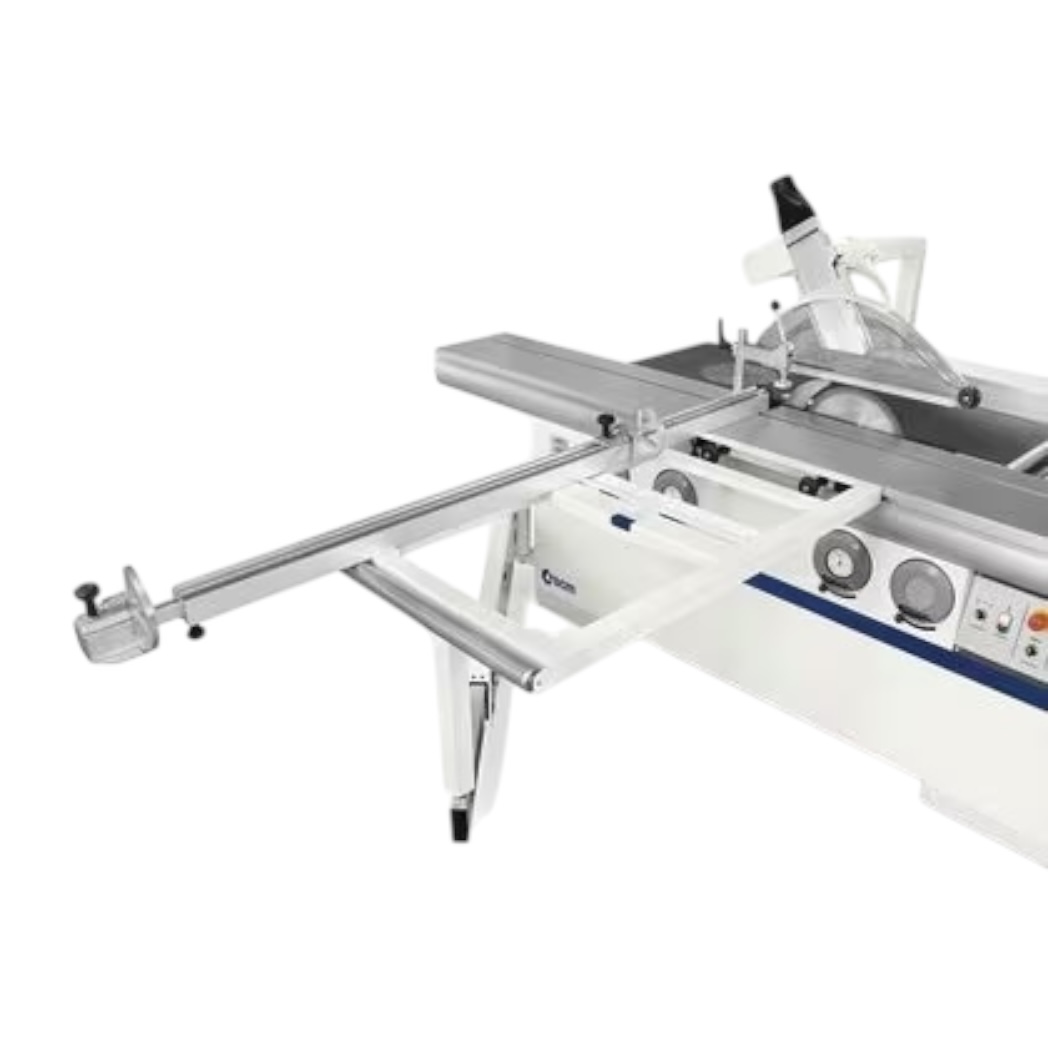

- 1200 x 650 mm support table with stop bar and 2 manual stops
- Parallel fence with fine adjustment, fully swiveling
- Manual tilt adjustment at the front
- Manual up/down adjustment at the side
- Automatically braked motor with direct switching

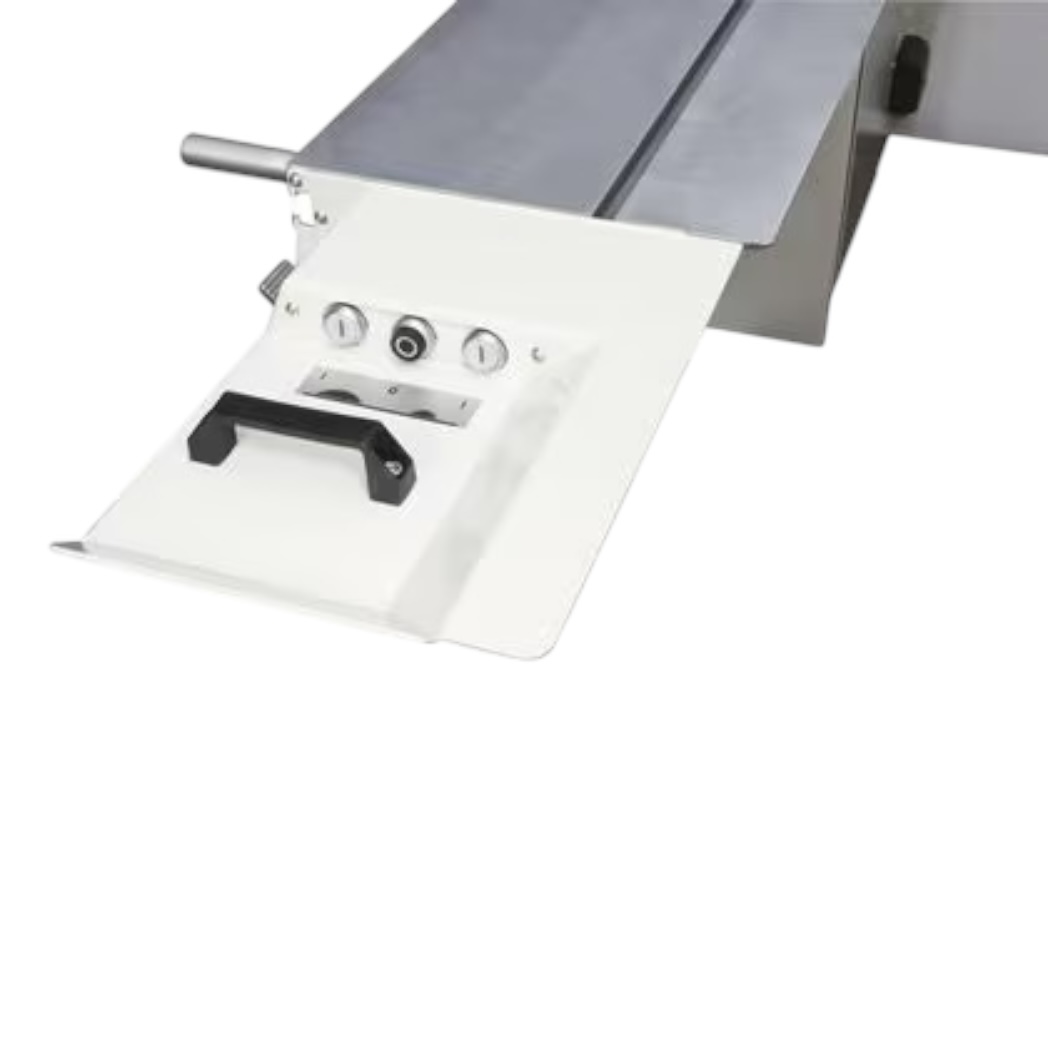

- Table extension on the outfeed side
- Mechanical digital angle display
- 110 V low-voltage circuit
Technical specifications:
- Saw blade adjustment: 90° – 45°
- Max. Cutting height at Ø 400 mm:
- Cutting capacity of roller table: 2600 x 3200 mm
- Standard cutting width: 1270 mm
- Saw blade speed: 4000 rpm
- Scoring saw blade speed: 9200 rpm
- Extraction nozzles:
- Ø 120 mm (bottom)
- Ø 80 mm (on saw guard)
- Main motor: S1 5 kW (6.6 HP)
- Scoring saw motor: S1 0.55 kW (0.75 HP)
Safety & CE equipment:
- Emergency stop
- Thermal protection
- Saw guard with integrated extraction (Ø 80 mm)
- CE documentation with sound data
- Certificate of Approval
Additional charges Features include:
- Digital stops on the support table
- Miter gauge with stop
- Miter gauge with cam compensation
- CompeX system
- Electronic readouts
- Heavy-duty motor options
Interested in this machine? Call us at 053-4312471 or email info@beckersmachines.nl
