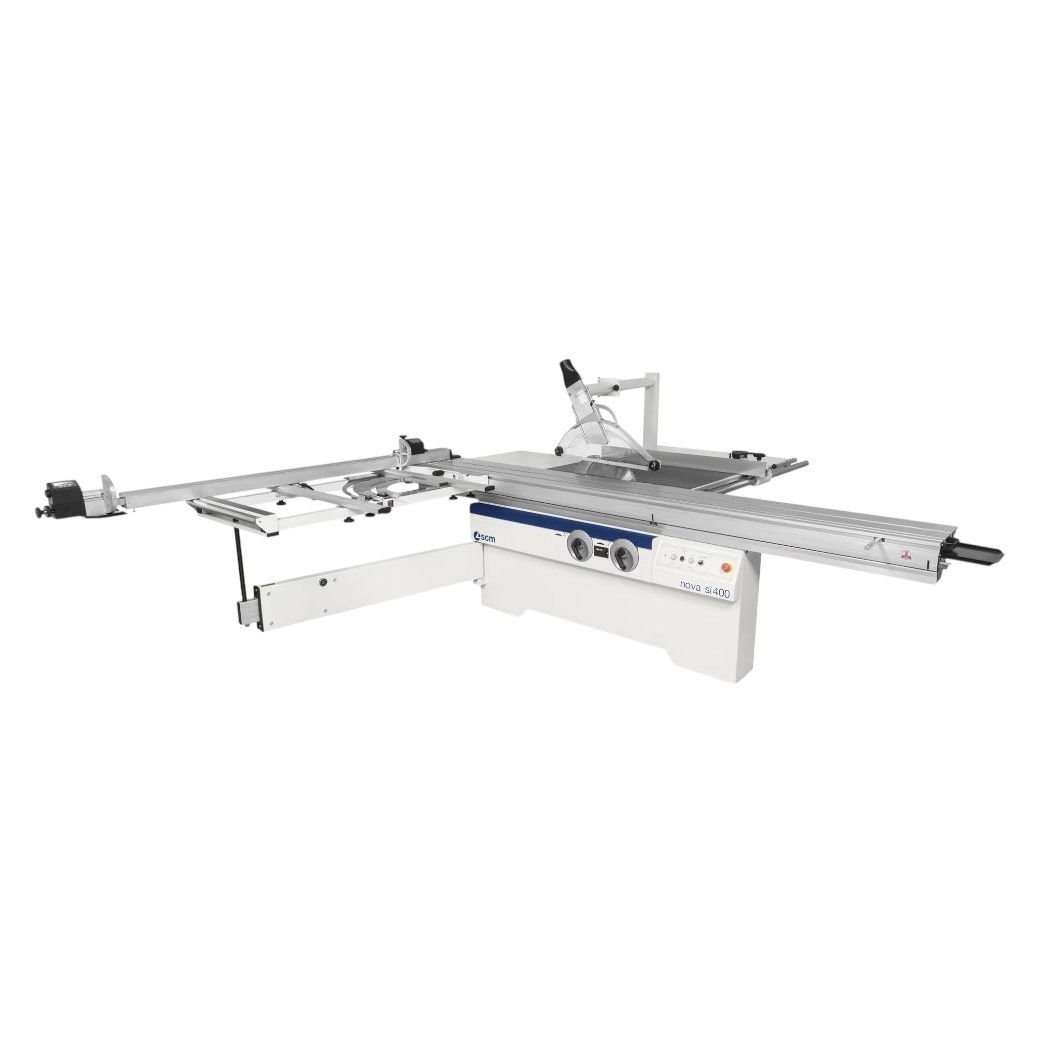

SCM Sliding Panel Saw, Type Nova SI400, CE.
The Nova SI400 from SCM is a powerful and stable sliding panel saw for those who demand absolute precision and reliability. Equipped with a 3200 mm aluminum sliding table on SCM-patented guides, this machine offers the perfect balance between smooth running, high cutting capacity, and vibration-free operation.
The robust cast iron saw unit is equipped with an independent scoring unit (all adjustments are external), ensuring maximum user-friendliness and accuracy. Thanks to the manual height and tilt adjustment at the front of the machine, you can work quickly and intuitively.
This SI400 offers a cutting height of up to 140 mm and comes standard with a swing-away parallel guide, automatic motor braking, thermal protection, and an extraction system with an integrated saw hood.
Standard features include:

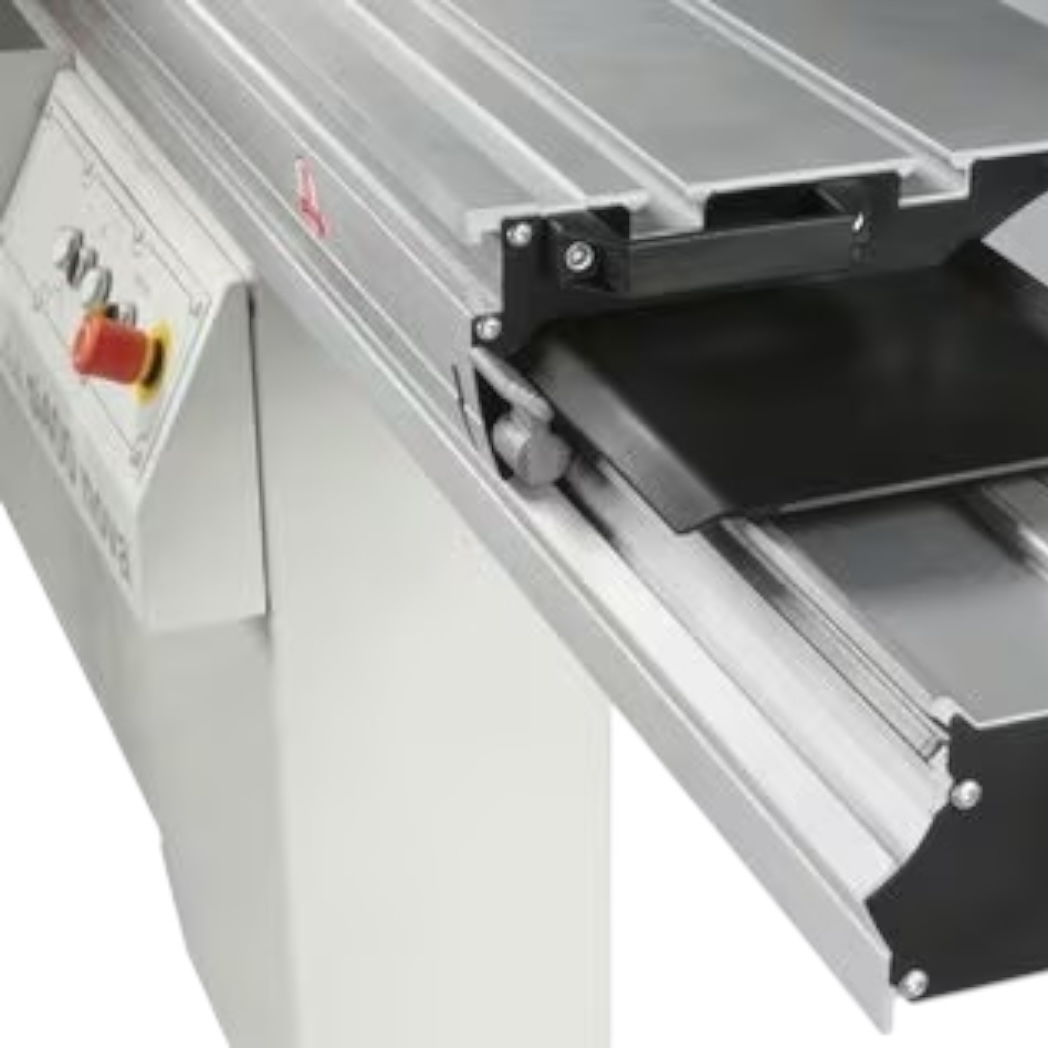

- 3200 mm roller table on hardened precision guides (SCM patent)

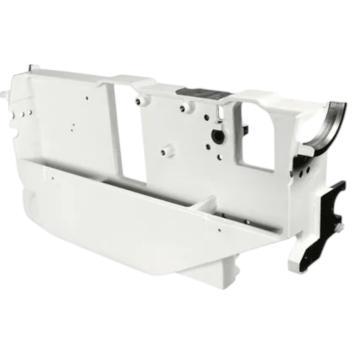

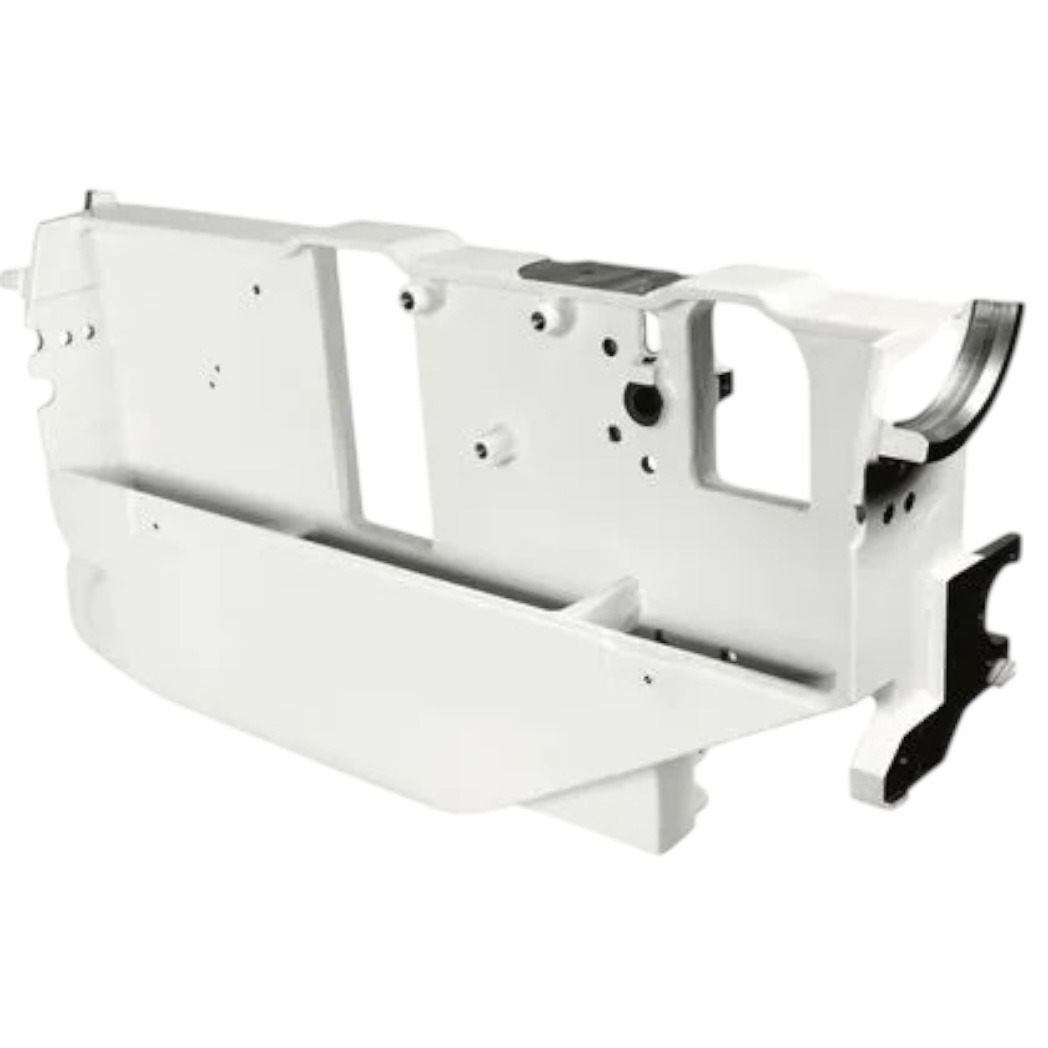

- Cast iron saw unit with independent scoring unit
- Table extension on the discharge side
- Swing-away parallel guide

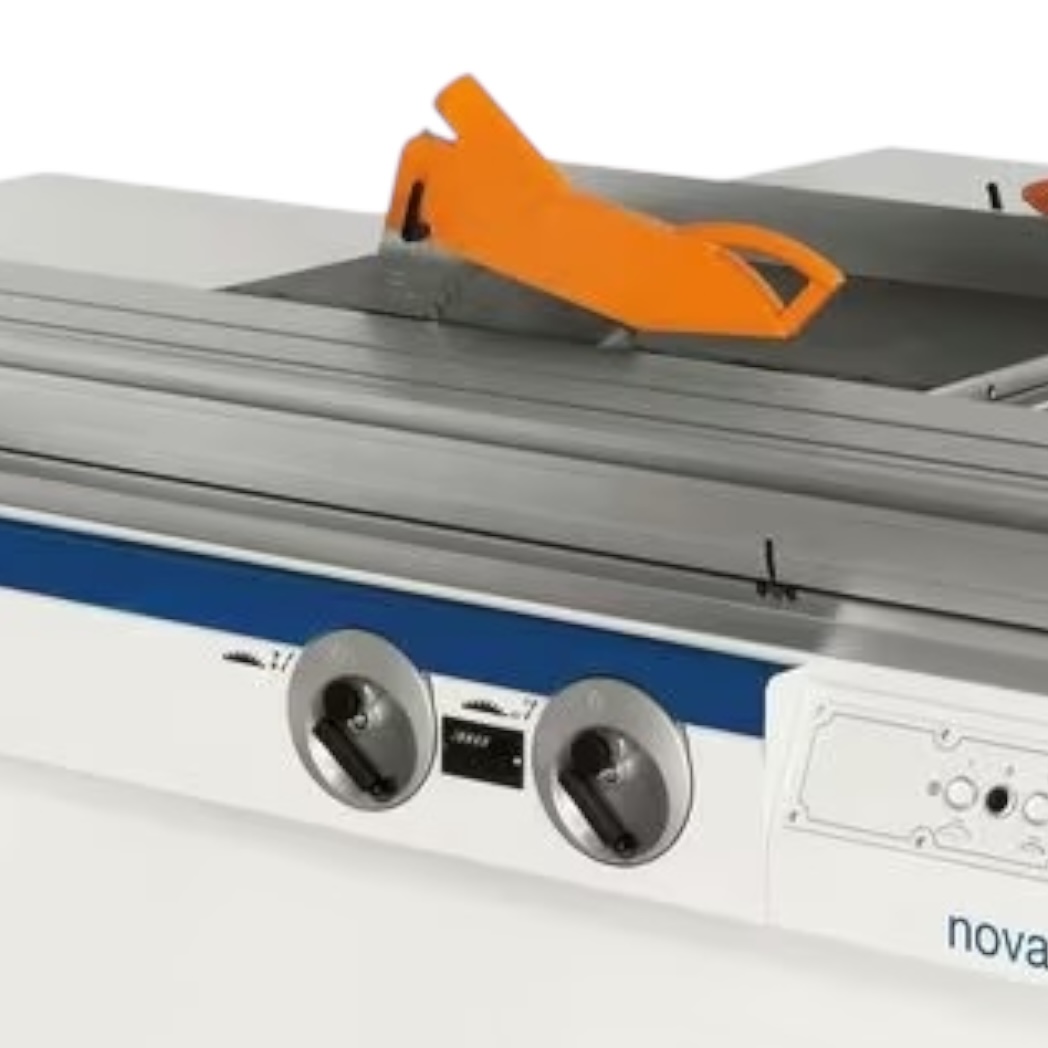

- Manual height and tilt adjustment at the front
- Mechanical digital readout of the cutting angle
- Cut protection with integrated extraction Ø 80 mm
- 110 V low-voltage circuit
- Direct-acting motor with automatic braking
- Thermal protection and emergency stop
Technical specifications:
- Saw blade angle: 90° – 45°
- Max. Cutting height at Ø 400 mm:
- Cutting capacity of roller table: 3200 x 3200 mm
- Standard cutting width: 1270 mm
- Main saw blade speed: 3700 rpm
- Scoring saw blade speed: 8500 rpm
- Extraction nozzles:
- Ø 120 mm (bottom)
- Ø 80 mm (on saw guard)
- Main motor:
- S1: 5.5 kW (7.5 HP)
- S6: 7 kW (9.5 HP)
- Scoring saw motor:
- S1: 0.75 kW (1 HP)
- S6: 0.9 kW (1.3 HP)
Additional charges include:
- Two digital stops on the ruler Support table
- Miter fence with stop on roller table
- Miter fence with cam compensation
- Guide for parallel cuts
- Electronic readout of rip fence
- Cutting width 1000 or 1500 mm instead of 1270 mm
- Powered motor: 7.5 kW (10 HP) or 9 kW (12 HP)
Interested in this machine? Call us at 053-4312471 or email info@beckersmachines.nl
