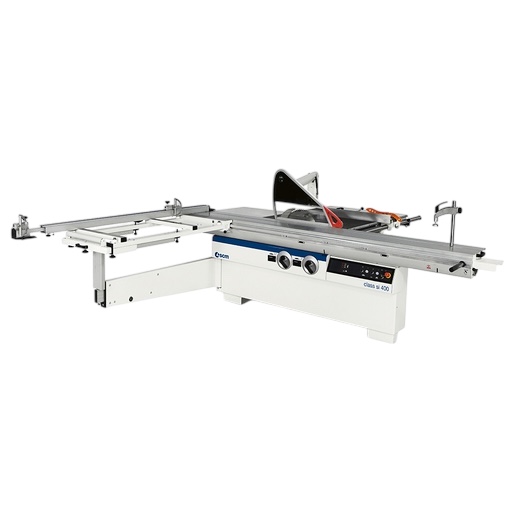

SCM Sliding Panel Saw, Type Class SI400, CE.
This robust SCM sliding panel saw, type Class SI400, features a 3200 mm sliding table, ideal for professional workshops. This robust machine comes standard with a ball-bearing aluminum sliding table running on hardened steel precision guides – patented by SCM – and comes with a full 10-year warranty on the sliding table.
The machine features an independent scoring unit (without saw blade), with all adjustments easily accessible from the outside. The enclosed saw unit construction guarantees vibration-free cutting and maximum saw blade stability.
Cutting height and bevel adjustments are manually controlled from the front. The saw blade angle is displayed digitally on a mechanical display. Thanks to the user-friendly control panel (angled at 25°), the machine is easy and intuitive to operate.
Standard features:
- Aluminum roller table (3200 mm) with 10-year warranty
- SCM-patented ball bearing system
- Independent scoring unit (without saw blade)
- Manual height and bevel adjustment (front)
- Mechanical digital bevel readout
- Aluminum support fence on roller table
- Swing-away parallel guide
- Saw guide with fine adjustment
- Direct-acting motor
- Eccentric clamp and table extension
- Saw guard with integrated extraction Ø 100 mm
- Thermal protection
- Low-voltage circuit 110 Volt
- Control panel angled at 25°
Technical specifications:
- Cutting capacity: 3200 x 3200 mm
- Cutting width right: 1270 mm
- Saw blade tilt adjustment: 90° – 45°
- Max. cutting height 90° (Ø 400 mm): 140 mm
- Max. Cutting height 45° (Ø 400 mm): 97 mm
- Saw blade speed: 3000 / 4000 / 5000 rpm
- Scoring saw speed: 8500 rpm
- Lower suction nozzle: Ø 120 mm
- Saw guard suction nozzle: Ø 100 mm
- Main circular saw motor: 7 kW (9.5 HP)
- Scoring saw motor: 1.3 kW (1.7 HP)
CE-compliant:
- Automatic motor brake
- Microswitch on saw unit access door
- Extra-high fence for parallel cuts
- Emergency stop within working range
- CE manual with audio data
- Certificate of approval
- Lockable main switch
Optional options:
- Digital stops on the ruler support table
- Miter fence with digital stop
- Miter fence with Cam compensation
- (Digital) fence for parallel cutting
- Electronic readout of rip fence
- Cutting width right: 1000 or 1500 mm (instead of 1270 mm)
- Parallelogram support table +50°/-50°, with digital angle readout
- Second support table
- Pneumatic pressure bar (2 cylinders)
- Engine power: 9 kW (12 HP)
