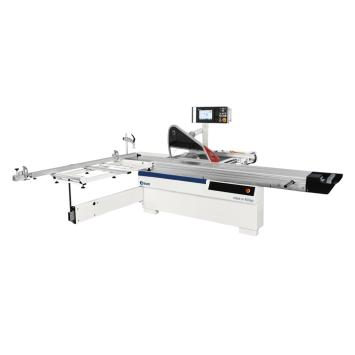

SCM Sliding Table Saw, Type Class SI400 EP, CE.

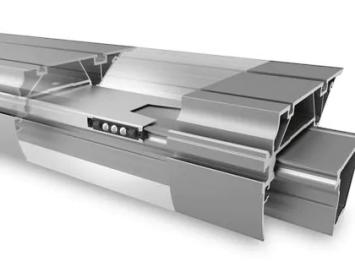

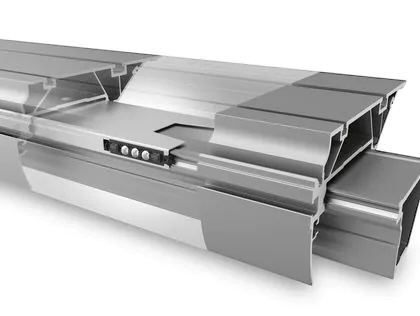

Professional sliding table saw from SCM, type Class SI400 EP, equipped with a 3200 mm sliding table with a 10-year warranty. The aluminum sliding table runs on ball rollers over hardened and ground precision guides – a patented SCM system – and ensures a smooth and extremely precise cutting motion.

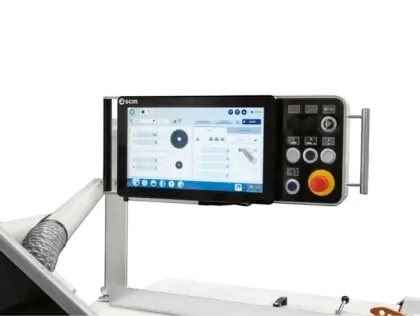

Equipped with an independent scoring unit (saw blade not included), with all adjustment options externally. The "Ready" control is integrated into the frame under the sliding table and features 2-axis electronic control for both the cutting height and the saw blade angle. Operation can be manual, semi-automatic, or fully automatic.
Standard features:
- 10-year warranty on aluminum roller table
- SCM guide system with ball rollers
- Independent scoring unit
- 2-axis electronic control for cutting height and bevel
- 99-program memory
- Tool database, calculator, and hour meter
- Direct-acting motor
- Vibration-free saw unit construction
- Saw guide with fine adjustment
- Swing-away parallel guide
- Eccentric clamp and table extension

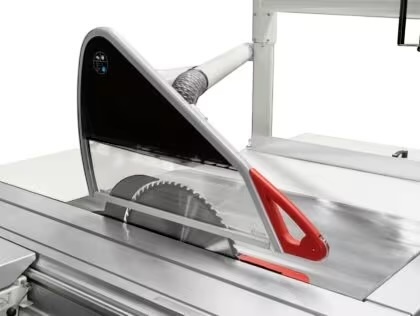

- Saw guard with dust extraction (Ø 100 mm)
- Low-voltage circuit 110 V
- Thermal protection
Technical specifications:
- Cutting range: 3200 x 3200 mm
- Cutting width: 1270 mm
- Tilt adjustment: 90° – 45°
- Max. cutting height 90° (Ø 400 mm): 140 mm
- Max. Cutting height 45° (Ø 400 mm): 97 mm
- Main circular saw speed: 3000 / 4000 / 5000 rpm
- Scoring saw speed: 8500 rpm
- Lower extraction nozzle: Ø 120 mm
- Upper extraction nozzle: Ø 100 mm
- Main motor: 7 kW (9.5 HP)
- Scoring saw motor: 1.3 kW (1.7 HP)
CE-compliant:
- Automatic motor brake
- Microswitch on saw unit access door
- Extra-high fence for parallel cuts
- Emergency stop in the work area
- CE-certified manual and audio data
- Lockable main switch
Optional options:
- Electronic positioning of the rip fence
- Digital readout of stop cams
- Various miter gauges
- Rotating Support table (parallelogram system)
- Full Support System (angle-adjustable support table)
- Powered motor: 9 kW (12 HP)
- Extended carriage: 3800 mm
Interested in this machine? Call us at 053-4312471 or email info@beckersmachines.nl
