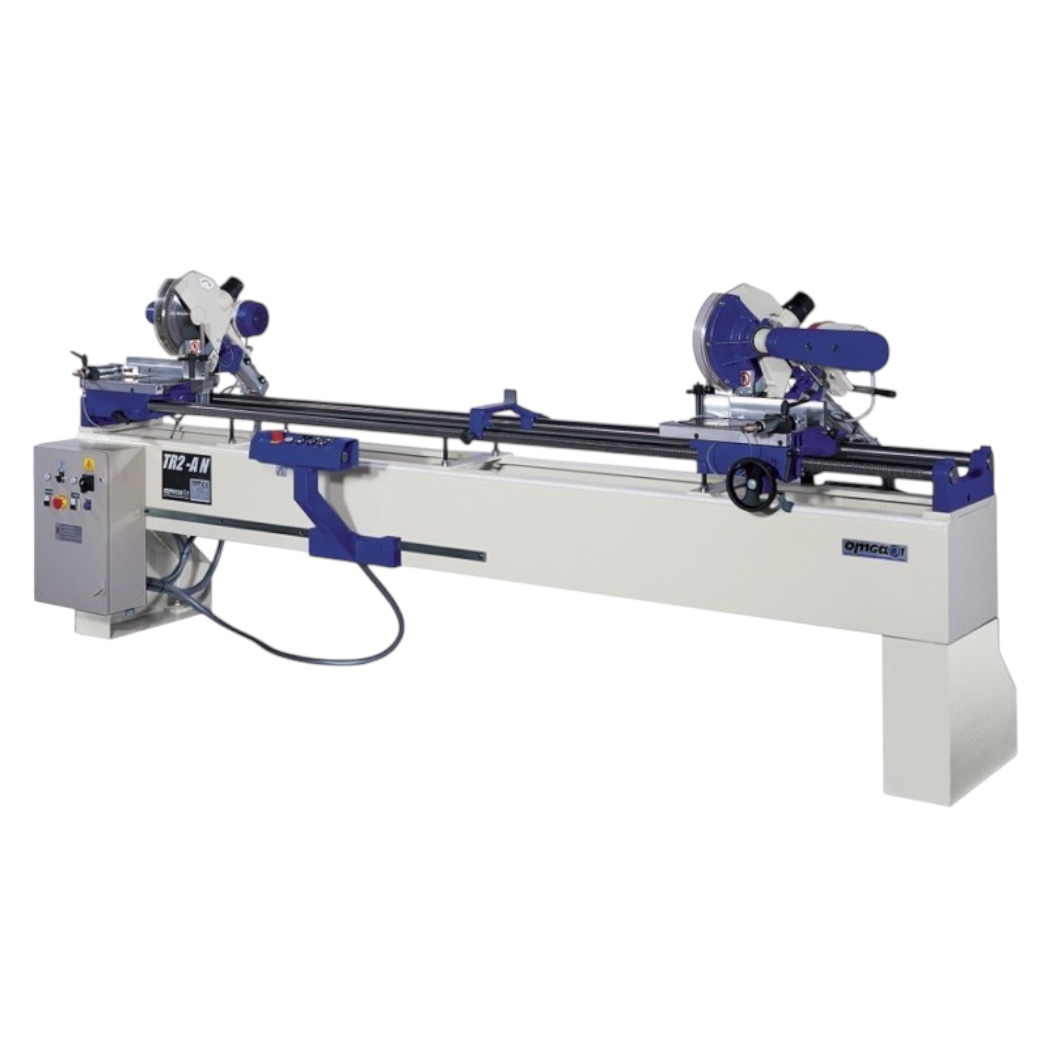

OMGA TR2A NC – Fully Automatic Double Crosscut Saw for Series Production.
The OMGA TR2A NC is an extremely precise and reliable double crosscut saw, designed for serial crosscutting with maximum speed, safety, and precision. With its electro-pneumatically controlled sawing motion and NC-controlled positioning of the right saw unit, this machine is ideally suited for industrial applications in window frame construction, interior construction, and the timber trade, among others.
The workpiece is automatically pneumatically clamped during the crosscutting cycle, after which it is precisely cut to size. Depending on the application, you can choose:
- Simultaneous sawing with both units
- Sequential sawing (ideal for shorter workpieces)
- Sawing with a single saw unit

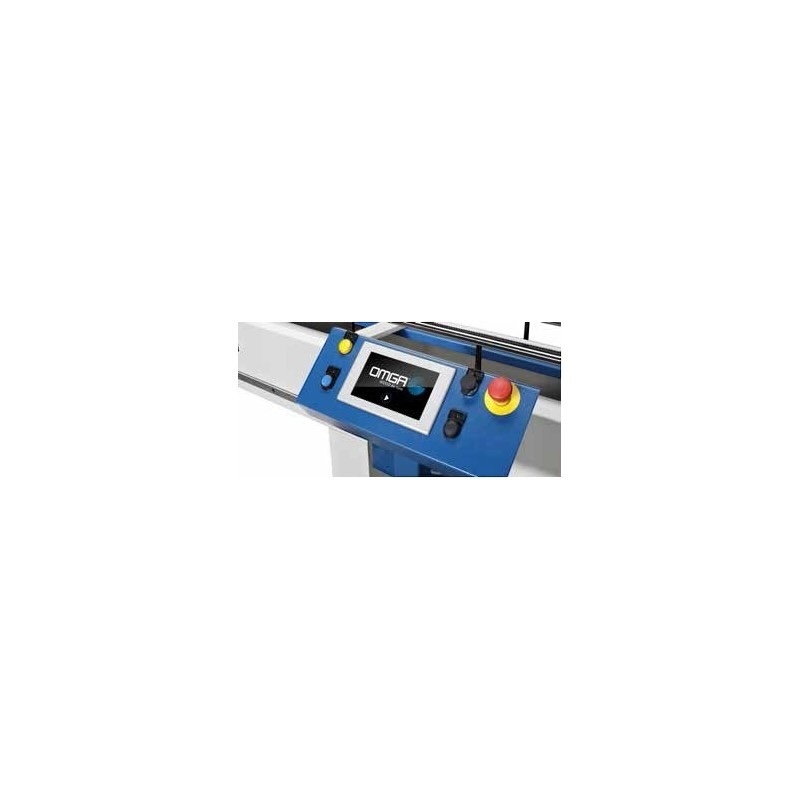

Operation is easy via a 7" touchscreen with NC control, on which sawing programs can be entered using the virtual keyboard, a network connection, or via CSV files via USB.
Key specifications:
- Max. crosscut length at 90°: 2,800 mm
- Min. crosscut length at 90°: 215 mm | at 45°: 380 mm
- Max. cutting depth at 90°: 145 mm | at 45°: 93 mm
- Cutting height: 84 mm
- Saw blade diameter: Ø 300 mm
- Motor power: 2 motors of 2.2 kW (3 HP) each
- Exhaust connections: 2 x Ø 80 mm 800 m³/h total
- Dimensions: 3,675 x 1,450 x 1,200 mm
Included as standard:
- 2 vertical and 2 horizontal pneumatic clamps
- 2 carbide saw blades
- Air supply unit with filter and oil mister
- Polycarbonate protective cover, main switch, overvoltage protection
- Two-hand operation for safety
- Self-centering lock at frequently used angles
Optional options available:
- Larger cutting lengths up to 5,500 mm
- Power-efficient motors
- Higher cutting capacity with larger saw blades
- Control systems available in various configurations
