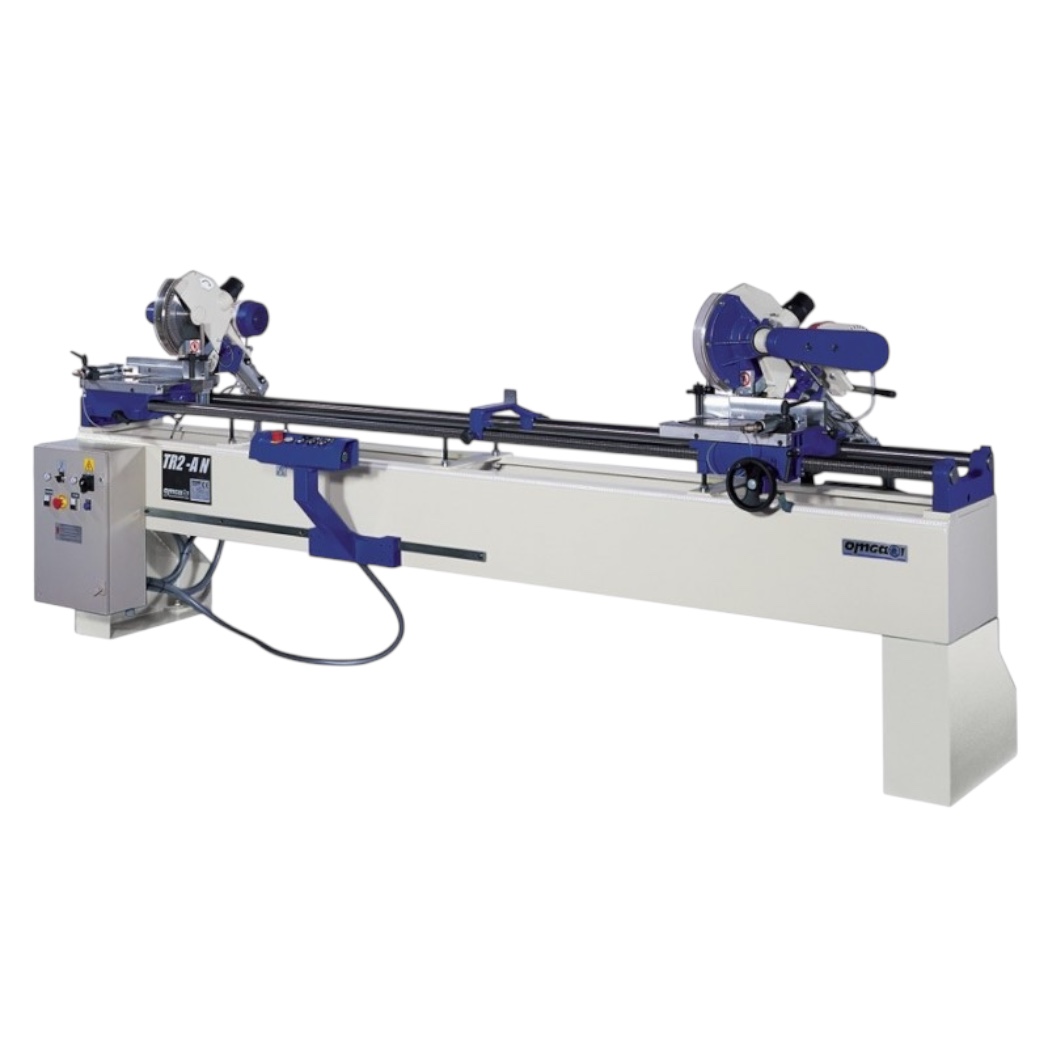

OMGA Double Crosscut Saw, type TR2A VIS, CE.
This robust and precise double crosscut saw features electro-pneumatic sawing. It is operated via a selector switch on the control panel, offering three sawing options:
- Simultaneous crosscutting with both saw units
- Sequential crosscutting with both saw units (for short workpieces)
- Crosscutting with only one saw unit

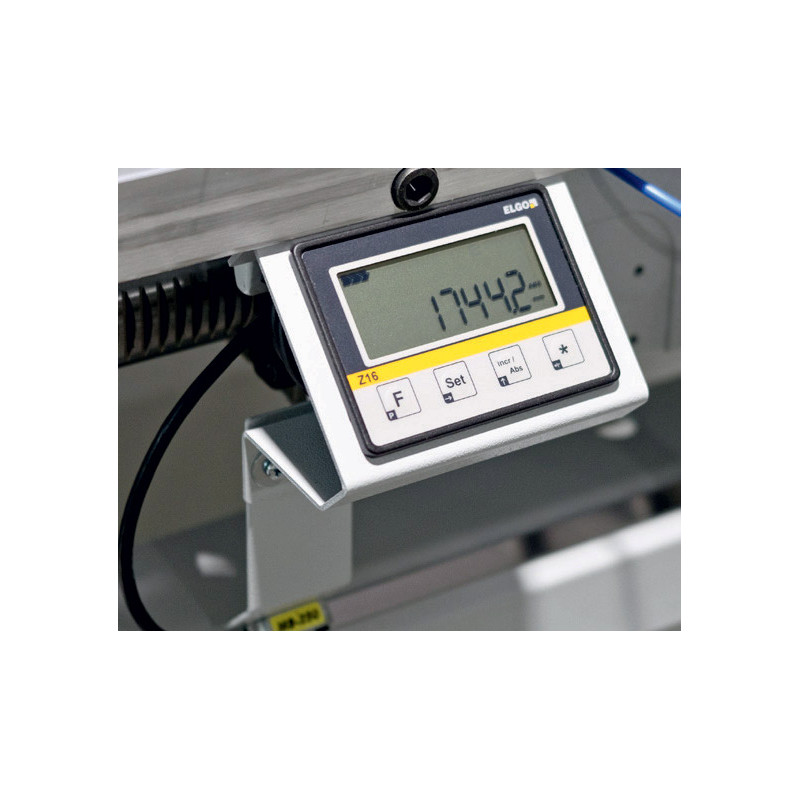

During the sawing cycle, the workpiece is pneumatically clamped, crosscut, and opens automatically when in the rest position. The left saw unit is fixed, while the right saw unit is manually adjustable via a handwheel. The distance between the saw blades (net cutting width) is displayed digitally.
Standard features:
- 2 vertical pneumatic clamps
- 2 horizontal pneumatic clamps
- Left saw unit is fixed
- Includes 2 carbide saw blades
- Fixed self-centering locking points at frequently used angles
- Other angles can be manually locked
- Movable workpiece support between both saw units
- Air supply unit with filter and oiler
- Low-voltage circuit, surge protection, and main switch
- Motor brakes
- Two-hand control for activating the saw cycle
Technical specifications:
- Max. crosscut length at 90°: 2,800 mm
- Min. crosscut length at 90°: 215 mm
- Min. crosscut length at 45°: 380 mm
- Max. cutting depth at 90°: 145 mm
- Max. cutting depth at 45°: 93 mm
- Max. Cutting height: 84 mm
- Saw blade diameter: Ø 300 mm
- Motors: 2 x 2.2 kW / 3 HP
- Extraction diameters: 2 x Ø 80 mm
- Total volume flow: 800 m³/h (minimum)
- Dimensions: 3,675 x 1,450 x 1,200 mm
Optional options include:
- Cutting lengths: 3,500, 4,500, or 5,500 mm
- Digital readouts
- Control systems available in various configurations
- Powerful motors
- Higher cutting capacity (larger saw blades)
