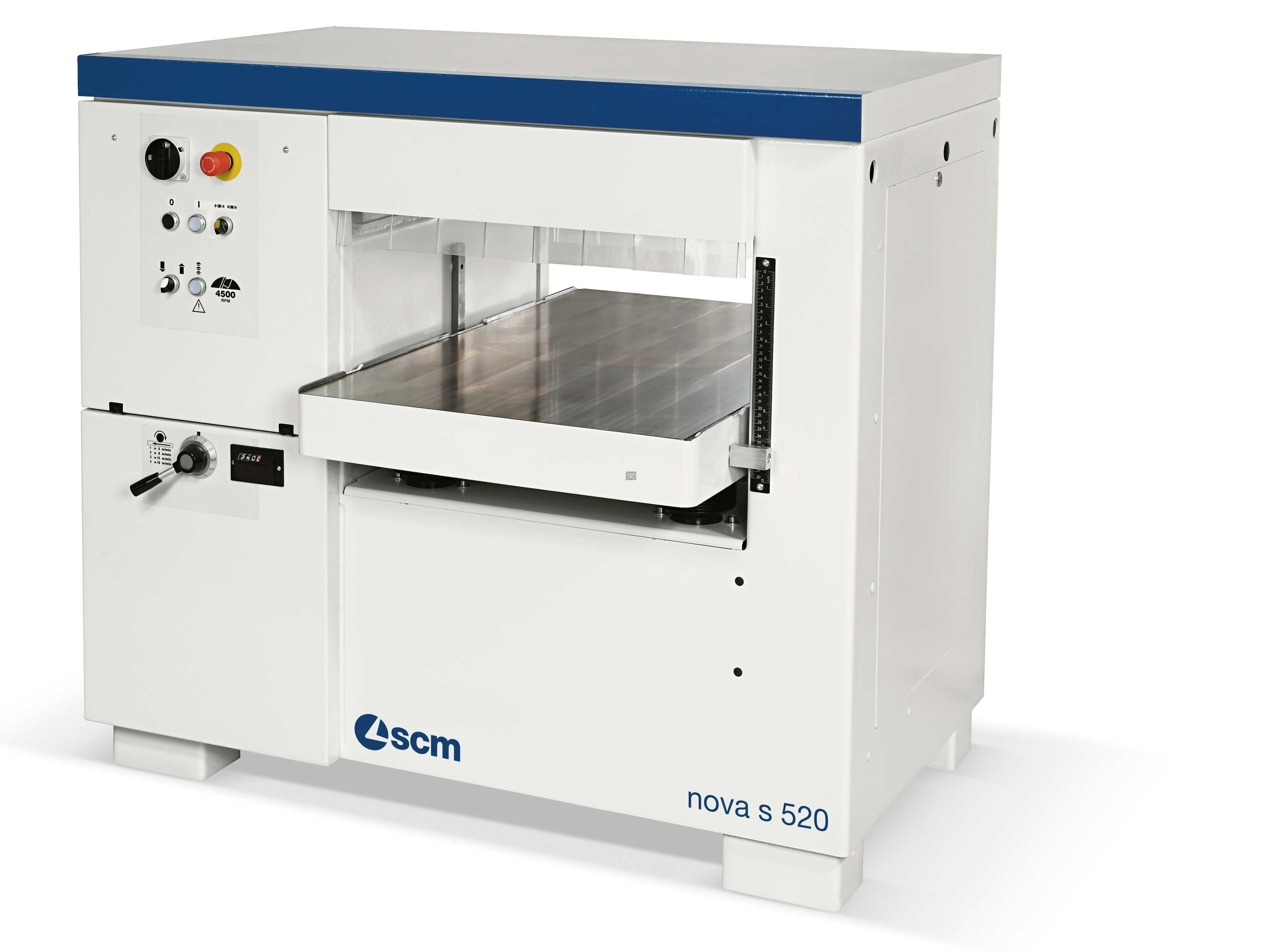

SCM Thicknesser, type S520 Nova.
Powerful and robust thicknesser for professional use. Equipped with a cast iron table top, a 4-blade chisel spindle, and two-speed electric height adjustment. Reliable SCM quality, ideal for medium to larger workpieces.
Standard version:
- Cast iron thicknesser table with reinforcing ribs
- Height adjustment via 4 steel spindles
- Rubber-coated outfeed roller
- Electric table up/down, 2 speeds
- Mechanical digital height readout
- 4-blade chisel spindle
- Manually operated star-delta switch
Technical specifications:
- Working width: 520 mm
- Working height: 3.5 – 300 mm
- Table dimensions: 530 x 900 mm
- Max. Chip removal: 8 mm
- Chisel spindle speed: 4,500 rpm
- Chisel spindle diameter: 120 mm
- Feed speeds: 5 / 8 / 12 / 18 m/min
- Exhaust hood diameter: Ø 150 mm
- Motor power:
- S1: 5.5 kW (7.5 HP)
- S6: 7 kW (9.5 HP)
- Min. workpiece length: 220 mm
- Min. workpiece width: 10 mm
Optional options:
- Tabletop with 2 free-running table rollers
- Second driven outfeed roller
- Tersa chisel spindle with quick-change system + 1 set of blades
- Motor power: 10 HP or 12 HP
