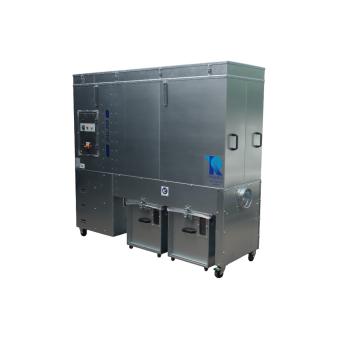

RIEDEX DM-160 Extraction Unit – Compact, quiet powerhouse with CE and ATEX certification.
The RIEDEX DM-160 is a powerful, quiet, negative pressure extraction unit designed for industrial applications where safety, efficiency, and compact design are paramount. This CE-approved unit is fully certified according to NEN-EN 16770 ATEX, which has been mandatory for negative pressure systems in wood processing since May 2019.
With a maximum capacity of 2,000 m³/h and an extra-high negative pressure of 3,000 Pa, the DM-160 is suitable for heavy-duty extraction work, while maintaining a noise level of just 64 dB(A).
Key features:
- Increased suction power with additional vacuum
- Latest-generation filters with automatic cleaning (shaker motor)
- Compact design with minimal installation space
- Low noise level: 64 dB(A)
- ATEX-certified (NEN-EN 16770)
- Very high fan efficiency
- Lower air volume monitoring
- Residual dust content < 0.05 mg/m³
- 2-year warranty
Technical specifications – Type DM-160:
- Motor power: 3 kW
- Capacity: max. 2,000 m³/h | Min. 1,448 m³/h
- Inlet pressure: 3,000 Pa
- Filter surface area: 10.6 m²
- Cleaning: Automatic via shaker motor after shutdown
- Residual dust content: < 0.05 mg/m³
- Collection volume: 160 liters
- Voltage: 400 V / 50 Hz
- Power consumption: 6.0 A
- Weight: 320 kg
- Dimensions (L x W x H): 1,875 x 840 x 2,150 mm
- Inlet diameter: 160 mm
- Inlet side: Left or right to be specified when ordering
The RIEDEX DM-160 offers the perfect combination of safety, efficiency, and reliability for modern workshops and industrial extraction systems.
Interested in this extraction unit? Call us on 0031 (0)53 4312471 or send an email to info@beckersmachines.nl.
