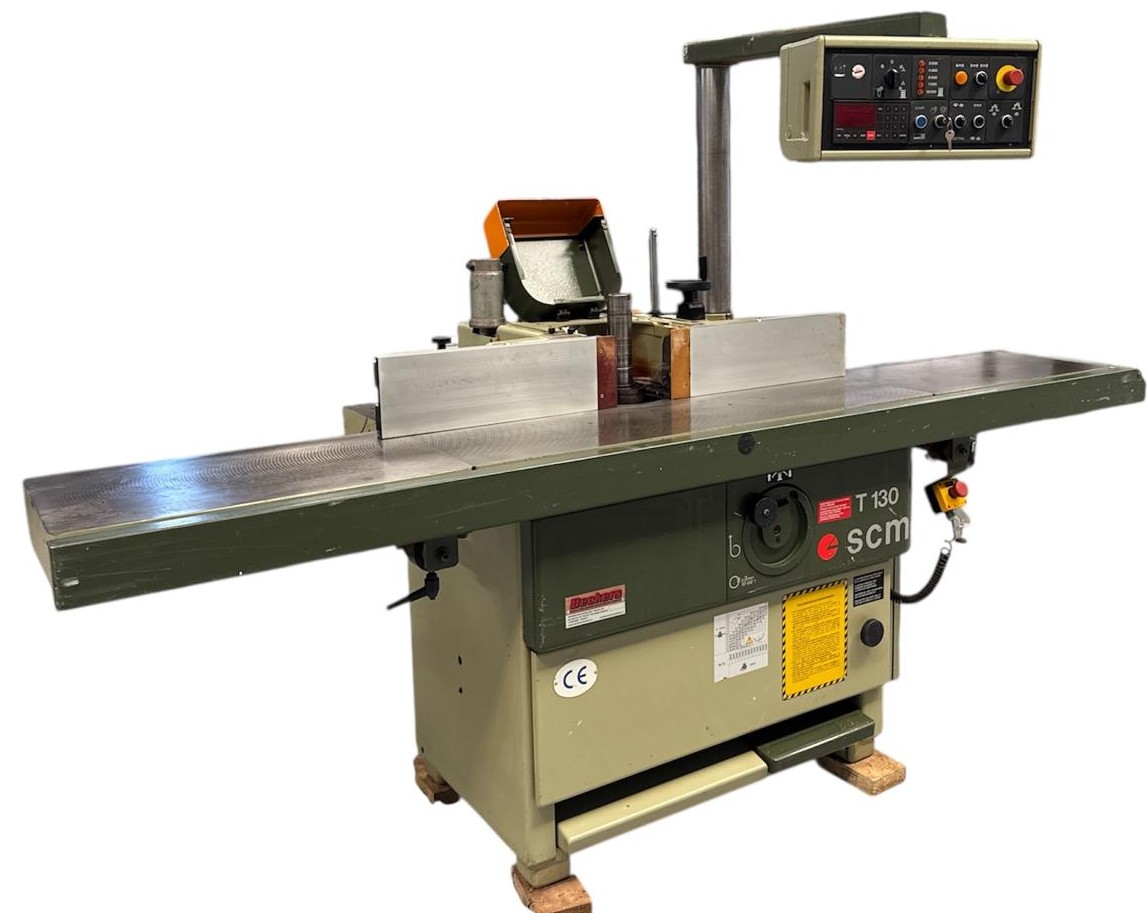

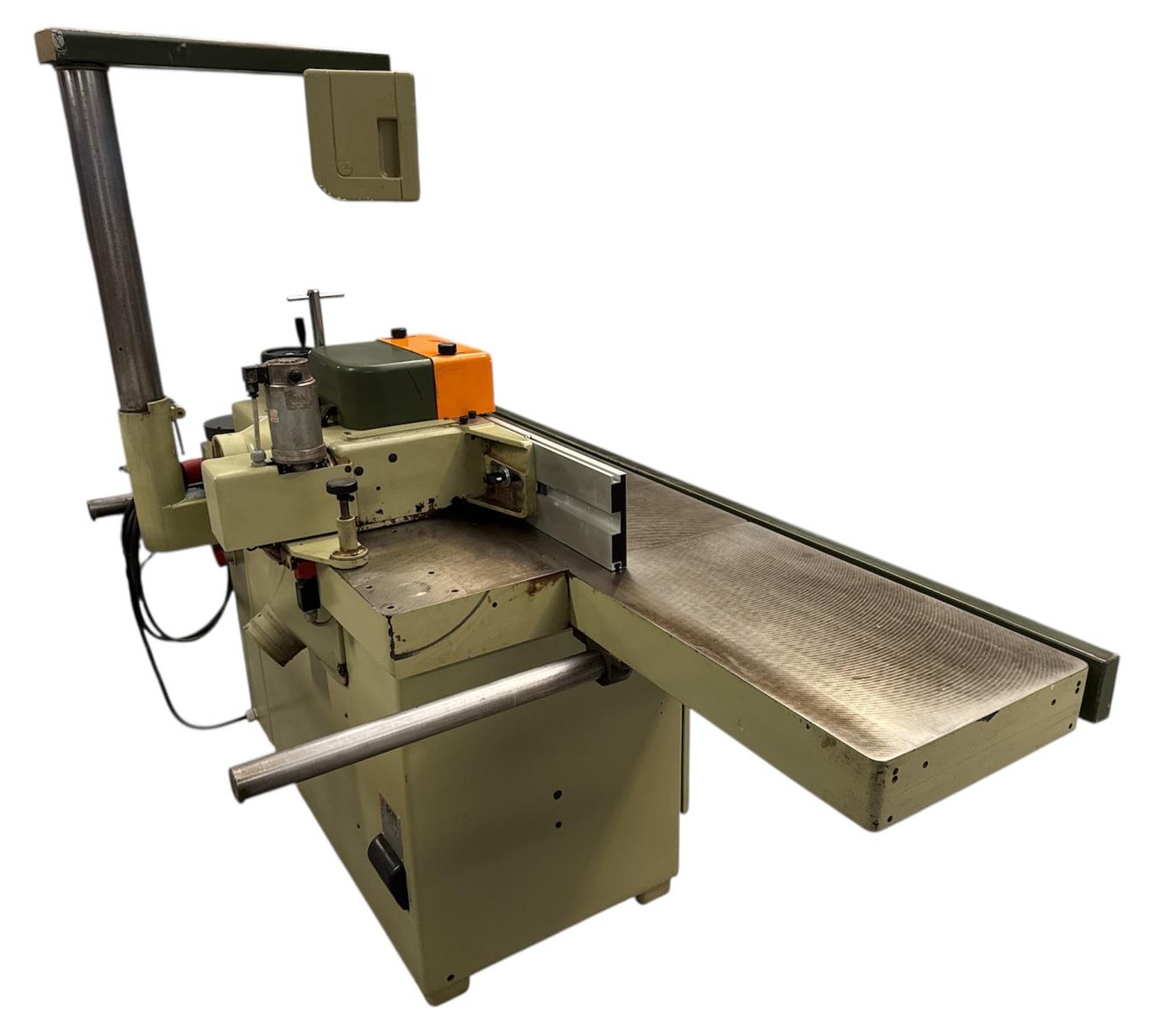

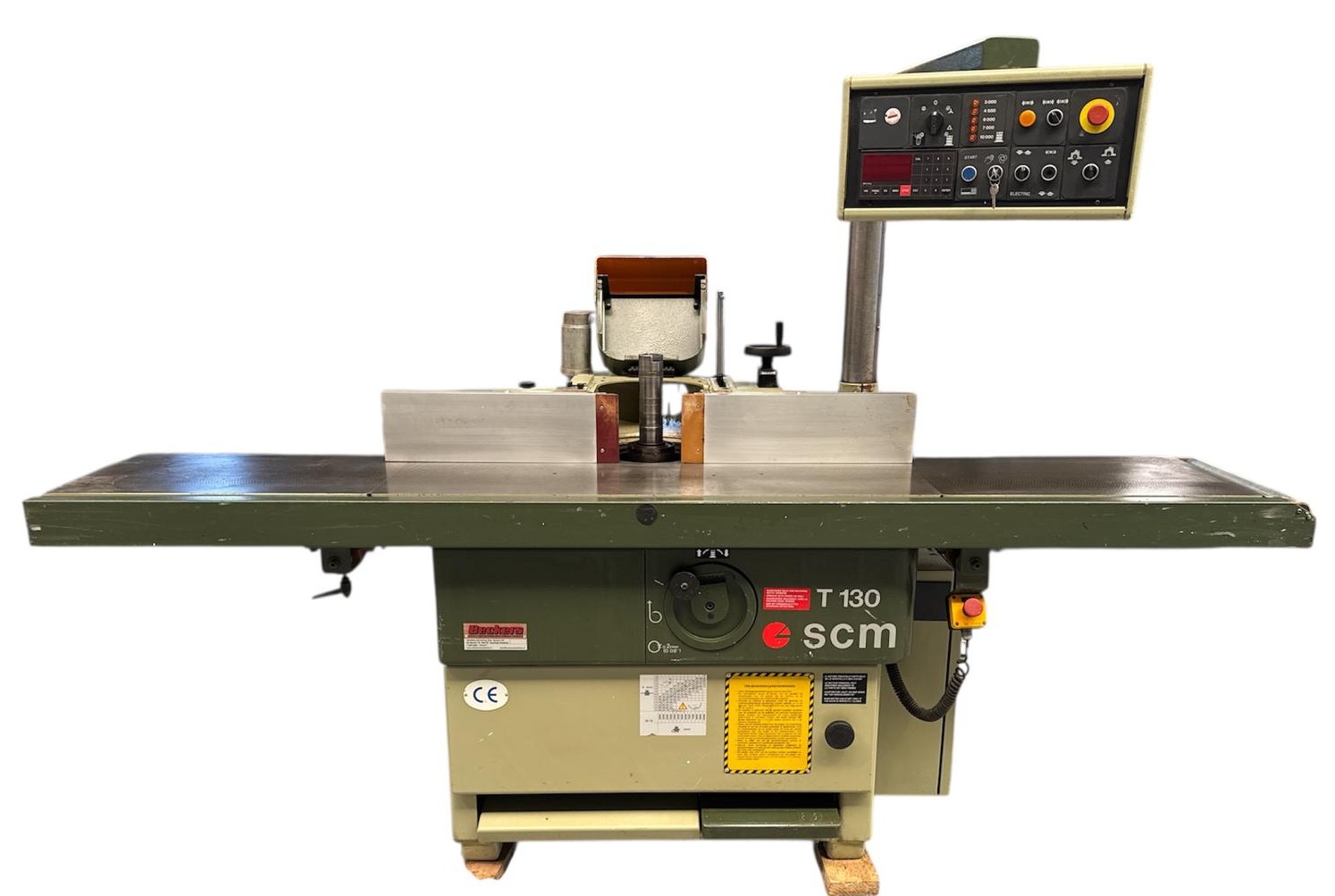

SCM milling machine,Type: T130 N-LL with control, CE, No. 211
Technical Description:
- Automatic positioning of the high/low of the spindle and horizontal positioning of the guide, 2 axis control.
- Long table L=2500 mm, incl. extendable material support with emergency stop.
- Spindle Ø 40 mm; clamping length 180 mm
- Motor 7.5 kW/ 10 HP and equipped with motor brake
- Incl. emergency stop with 0-voltage coil and thermal safety device
- Machine prepared for use of feeding device
- 5 speeds of the spindle; 3.000 - 4.500 - 6.000 - 7.000 and 10.000 rpm, adjustable at - front of machine
- Flex system / swinging away of the guide by means of an arm.

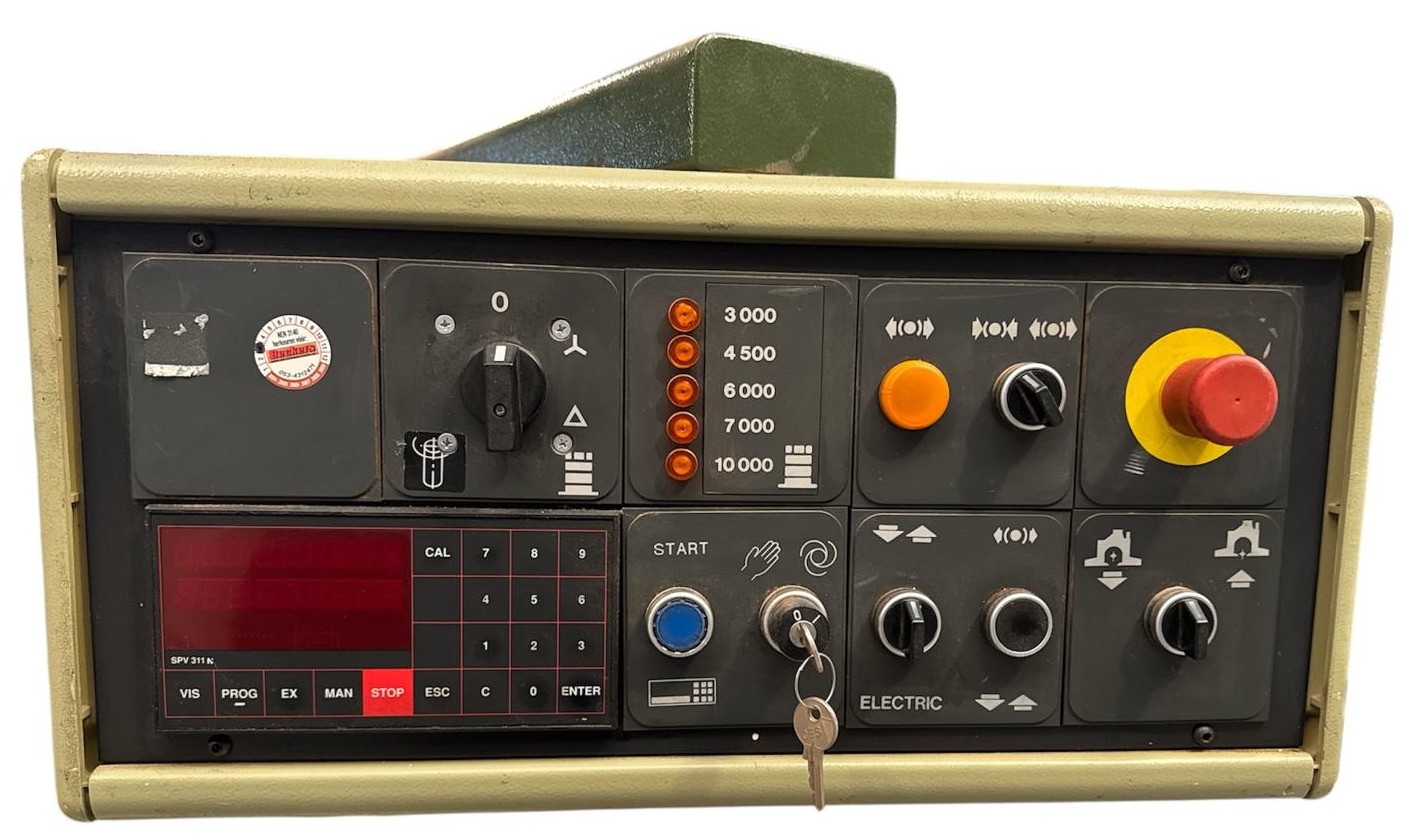

- High/low control of spindle digitally readable

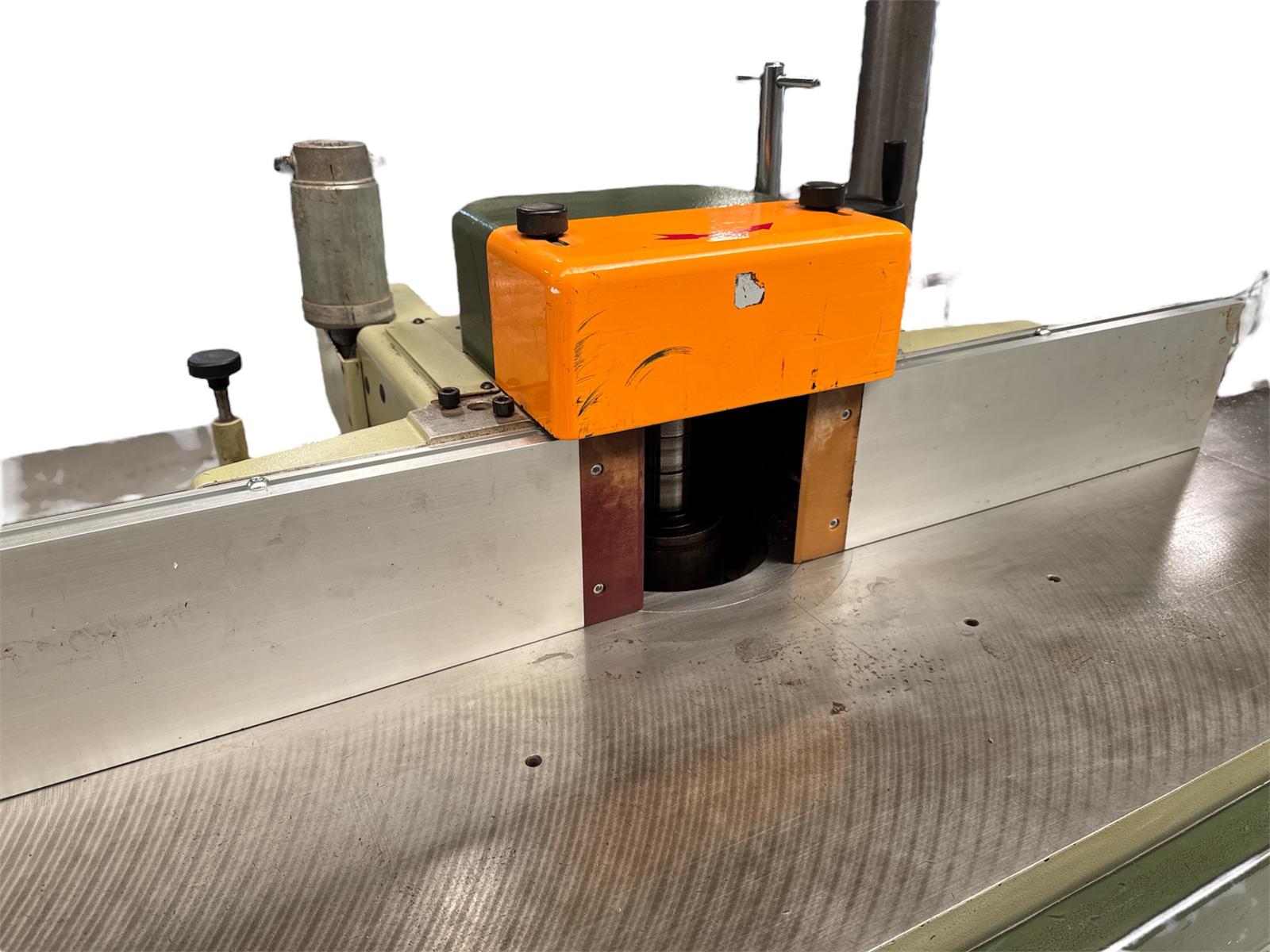

- Machine equipped with luxury aluminum guide plates
- Right-hand guide part separately adjustable
- Spindle lock on the front of the machine by foot pedal
- Weight 700 kg.
- 2 extraction nozzles; above 1 x Ø 120 mm and below 1 x Ø 120 mm.

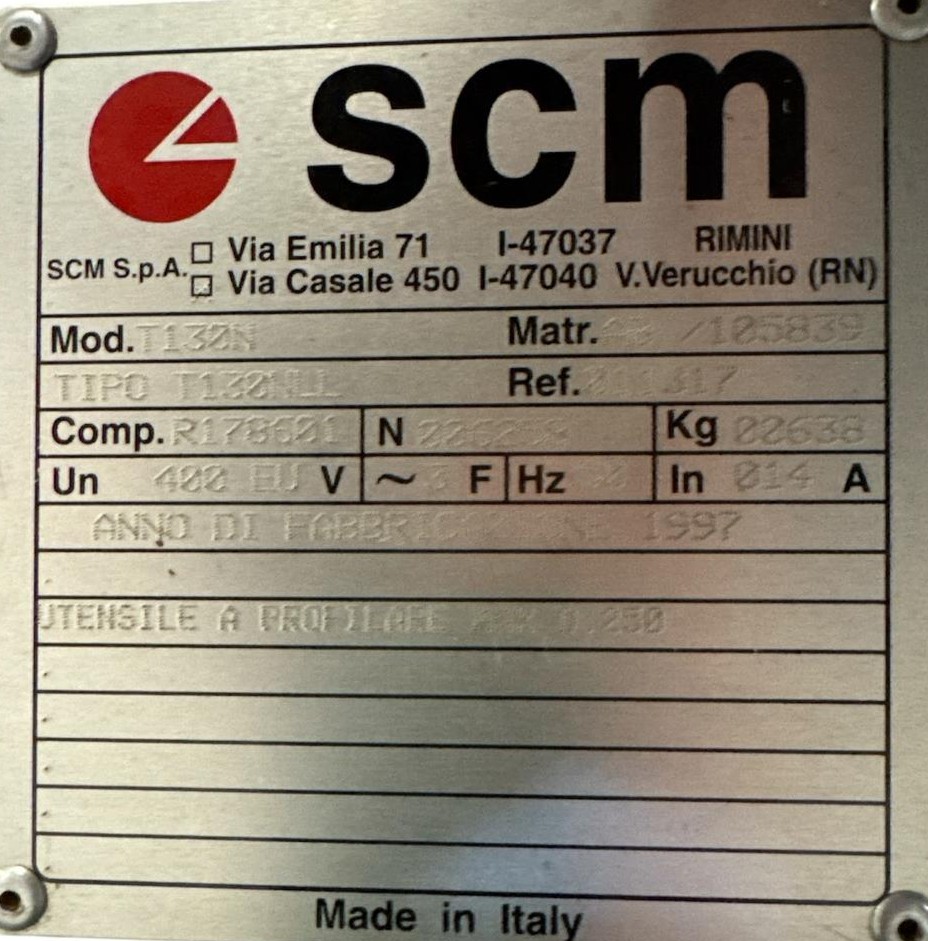

- Year built 1997 / CE Machine
