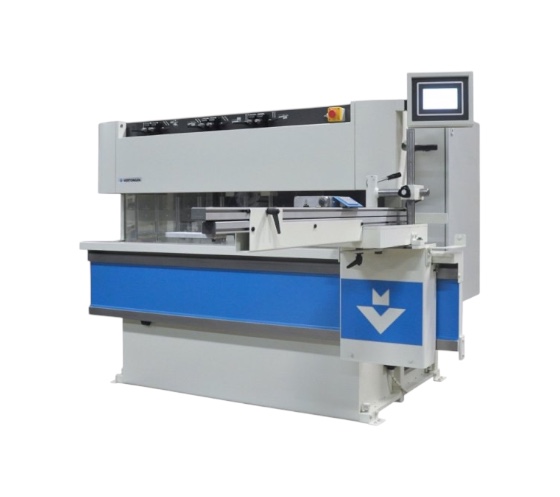

VERTONGEN 4-axis tenoning machine, type Pentho Compact 3 – CE.
The VERTONGEN Pentho Compact 3 is a compact, powerful, and precise 4-axis tenoning machine with intuitive controls and smart safety features. Suitable for various woodworking applications and expandable with numerous options.
Features & Specifications:
General:
- Model: Right-hand
- 7” Touch panel for operation and motor selection
- CE-compliant safety screen (dust-resistant and moves with the table)
- Dimensions: 2,200 x 1,700 x 1,600 mm
- Total extraction: 1 x Ø 80 mm and 3 x Ø 150 mm
Table:
- Vertically suspended, extra stable
- Rotatable from -60° to +60°
- Fixed height
- Standard manual operation, automatic option available
- Length fence: 2.4 m (optional: 3.4 m)
- Clamp for straight wood (round optional)
- Manual vertical quick-release (pneumatic optional)
- Support surface remains stable when rotating
Crosscut saw:
- Motor: 2.2 kW – 3,000 rpm
- Saw blade Ø 400 mm, low-noise operation
- Cutting height: 150 mm
- Horizontal adjustment: 20 – 155 mm
- Manual positioning on ball bushings
- Readout via ruler (optional: digital readout or laser marking)
- Extraction: Ø 80 mm
Tie heads (2x):
- Motors: 2 x 2.2 kW – 4,500 rpm
- Sliding rod suspension
- Movement:
- Horizontal: top -55 / +25 mm, bottom -55 / 0 mm
- Vertical: top 0 / +150 mm, bottom -5 / +115 mm
- Includes 2 teie heads Ø 160 x 145 mm with HM reversible blades
- Digital readout front and side
- Extraction: 2 x Ø 150 mm
Vertical Spindle:
- Motor: 5.5 kW – 4,000 rpm (option: 7.5 kW)
- Mounting: Dovetail guide
- Travel: Horizontal 150 mm, vertical -150 / +25 mm
- Spindle length: 200 mm with Prolock (option: 300 mm)
- Spindle Ø: 40 or 50 mm
- Max. tool diameter: Ø 350 mm
- Digital readout front and side
- Extraction: Ø 150 mm
Options (selection):
- Pneumatic clamps
- Round countersink
- Aluminum extension table
- Digital saw readout
- Scribing laser
- Extended fence
- Automatic table movement with adaptive cycle
- 7.5 kW motor or longer vertical axis
- 220 V transformer
Performance packs:
- Performance C3: 6 Position Indicators
- High-Performance C4: 7 CNC Controls
